Thermic Welded with Fixed Laminations
Working position: Horizontal, Vertical and Frontal

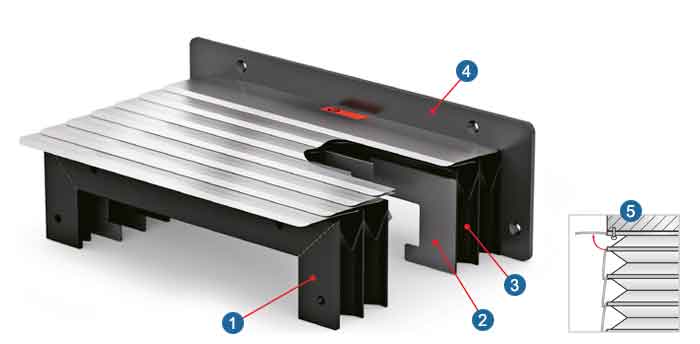

1) Flange 1
2) Stiffener
3) Fabric material
4) Flange 2
5) Possible special fixing to facilitate the mounting of the first steel lamination

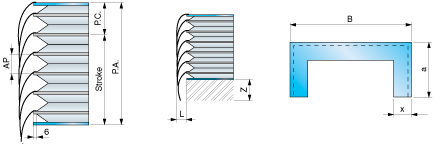

P.A. = Open length
B = Outside width
P.C. = Closed length
Stroke = Open length - closed length
a = Outside height
x = Fold height
