Thermic Welded Covers for Linear Slides
Example of bellows mounted on linear slides.
List of Standard Material
| Code | Support | Hood | Closed length for 1000 mm of open length. |
| S1 | PVC 0,50 | PVC + Polyester+ PVC 0,25 (TEMAT020) | 90 |
| P1 | PVC 0,50 | Polyurethane+ Polyester+ Polyurethane 0,25 (TEMAT015) | 90 |
| LX | PVC 1,00 | Panox/Kevlar Polyurethane + Polyurethane 0,33 (TEMAT169) | 150 |

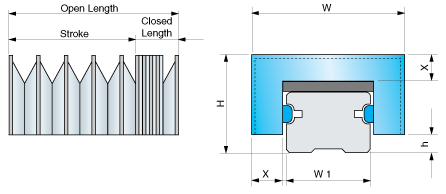

Standard Thermic-Welded Covers Size
| Slide nominal value W1 | Ply height X | Bellows width W | Total height H | Slide deviation h |
| 15 | 19 | 56 | 36 | 5 |
| 20 | 19 | 61 | 40,5 | 6 |
| 25 | 19 | 67 | 43 | 7,5 |
| 30 | 19 | 72 | 51 | 8 |
| 35 | 19 | 76,5 | 51 | 9 |
| 45 | 19 | 87,5 | 61 | 10 |
| 55 | 25 | 108 | 73 | 15 |
| 65 | 32 | 132 | 90 | 15 |
