Piezo Motors
New and innovative piezo motors (in rotary or linear format) from Piezo Motor Company in USA have recently been added into Motion Control Products' product portfolios, representing a quantum leap in design of small size high-performance DC motors.
Piezo Motion's rotary or linear piezomotors work on a patented principle of excitation of ultrasonic standing waves within a piezoelectric resonator. The resulting superposition of two orthogonal ultrasonic waves causes eliptical movement of the resonator tip, which direct drives a rotary or linear element.
Being injection-molded using extremely durable, but light-weight engineered reinforced thermoplastics, our piezo motors combine economical cost with superior precision and ultra-fast response /start-stop (≈ 30µs) characteristics. Piezo Motion’s rotary or linear piezomotors are highly energy-efficient, consuming zero power in hold position while still providing significant torque or force.
Our piezomotors are available as both open-loop control (non-feedback control) and closed-loop control (feedback control) systems; and are offered in a variety of configurations (including non-magnetic).
In the closed-loop system, motion control of the piezo motor is achieved via feedback generated from an encoder integrated within the motor assembly. Encoder communication electronics consists of a daughter board (pcb) with a serial (RS-232) port, mounted onto the main driver board. Optional programmable logic control (PLC) software with graphical user interface (GUI) enables control of the motor using standard Windows OS.
Piezomotors - Open Loop
ROMO Rotary Motor
- Torque: 4.0 mNm
- Max. speed: 600 rpm
- Fast Response Time: 30µrad
- Low Voltage: 5.0~7.5V DC
- Low current: 30~150ma
- Standalone or supplied as a kit (with Electronic drive, cables, power supply and manual)
- Ideal for high volume applications
LRMO Linear Motor
- Linear Motor without Encoder
- Resolution: > 25,000 steps per mm
- Max Speed: >0.2 m/s
- Response Time: < 30 µs
- Voltage: 5 V DC
- Low Power: 0.15 W to 1.5 W
- Can be supplied as an evaluation kit (with Electronic drive, cables, power supply)

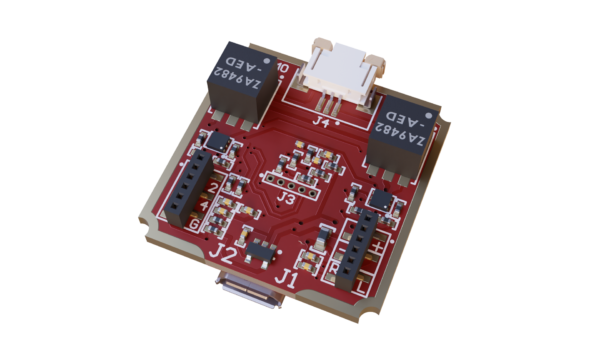

ROLR Drive PCB
- Open-loop Electronic Driver Board (Red PCB) 5.0/7.5 V DC for use with LRMO and ROMO Series
Ideal of application development and can be supplied individually or complete as a kit of parts with the LRMO or ROMO motors.
Piezomotors - Closed Loop

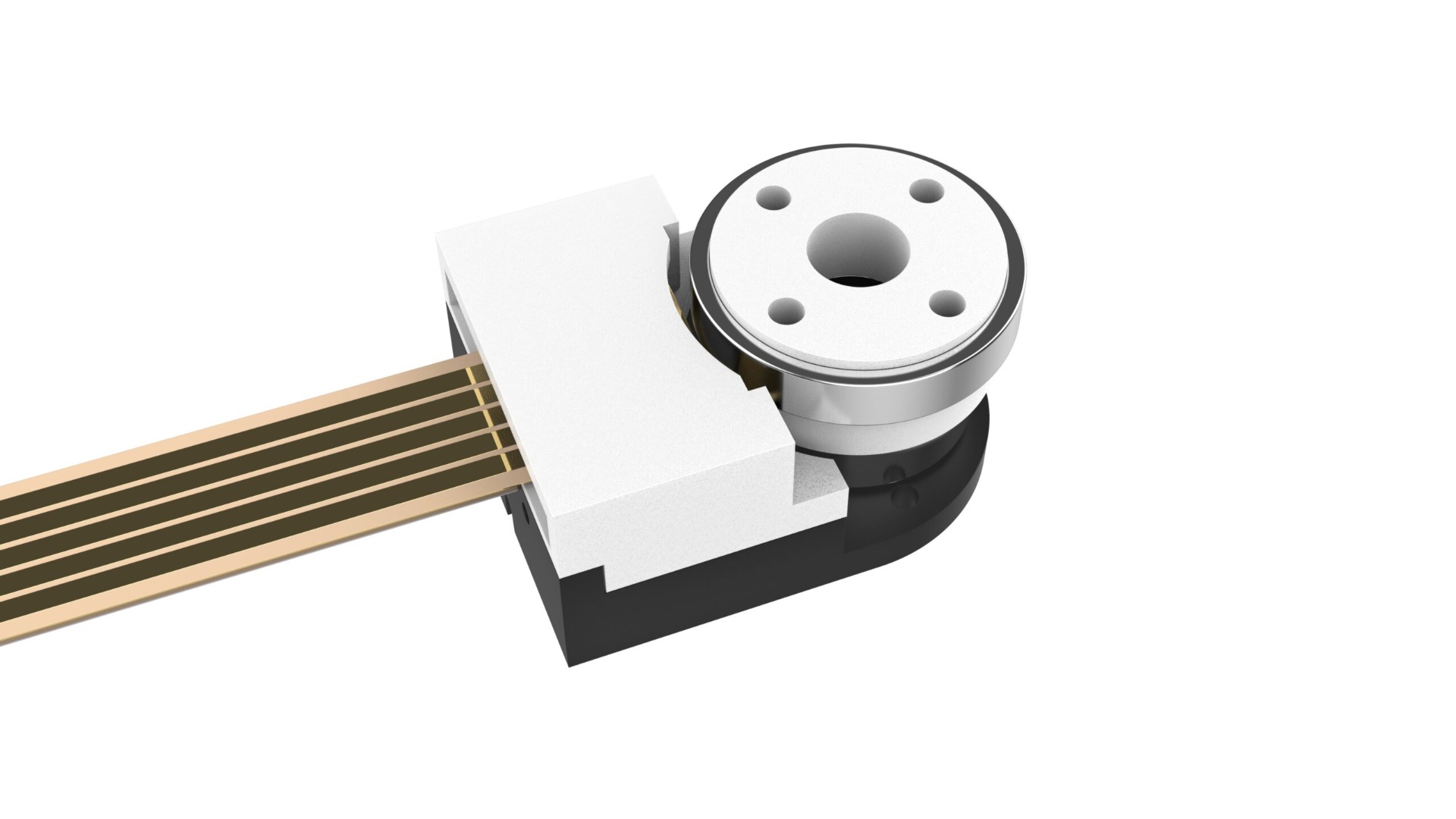

ROMO-E Rotary Motor
- Power Supply: 5.0V DC
- Stall Torque: ≥ 4 mNm
- Self-Braking Torque: ≥ 5 mNm
- Actuator Response Time: »30 µs
- Max Speed: > 600 rpm
- Minimum Angular Step: »30 µrad
- Standalone or supplied as a kit (with Electronic drive, cables, power supply and manual)
LRMO-E Linear
- Power Supply: 5.0V DC
- Push/Pull Force: ≥0.2 N
- Self-Braking Torque: ≥0.25 N
- Motor Response Time: »30 µs
- Travel Range: 9.0 mm
- Max Speed: ≥150 mm/s
- Standalone or supplied as a kit (with Electronic drive, cables, power supply and manual)

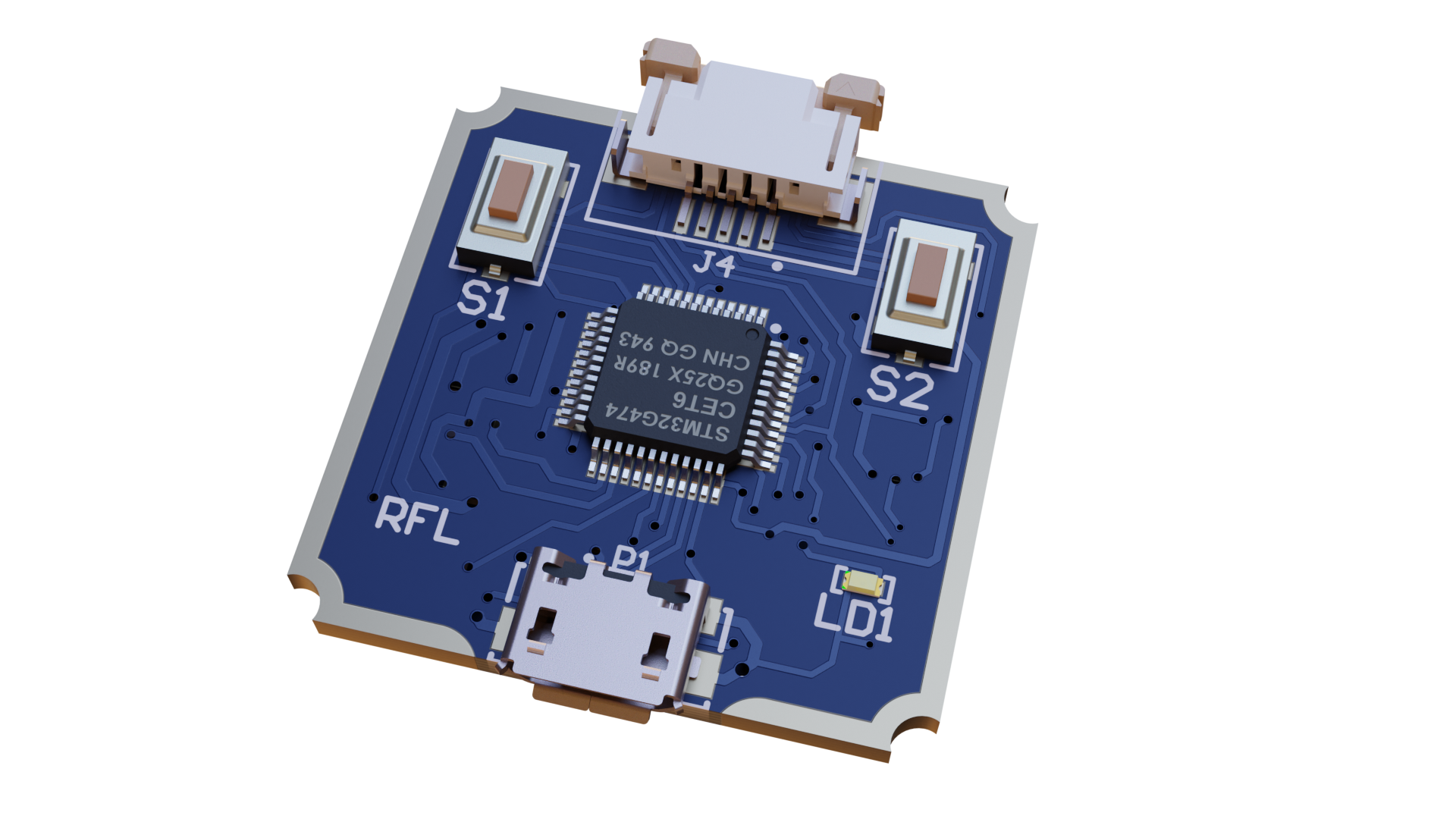

ROMO E Drive PCB
- Factory Pre-Programmed Close-Loop Electronic Driver Board (Blue PCB) 5.0 V DC for use with ROMO-E close loop system only
- Standalone or supplied as a kit (with Electronic drive, cables, power supply and manual)
